Projects & Case Studies

Real work. Deeper project stories.

See Diamond project photography, then go deeper into the decisions, conditions and lifecycle lessons behind selected work.

Two kinds of proof

See the work. Understand the thinking.

Project photography shows the scale and finish of Diamond’s work. Case studies show what happened around the floor: the condition, the decision, the execution path and what the project teaches. Technical Resources go deeper into the principles behind those decisions.

Featured Case Studies ↓Explore Technical Resources →

Featured case studies

Real floors. Verified facts. Deeper execution stories.

We only publish project details we can substantiate. These case studies show the condition, scope and decisions behind selected Diamond work without inventing customer names, performance statistics or outcomes.

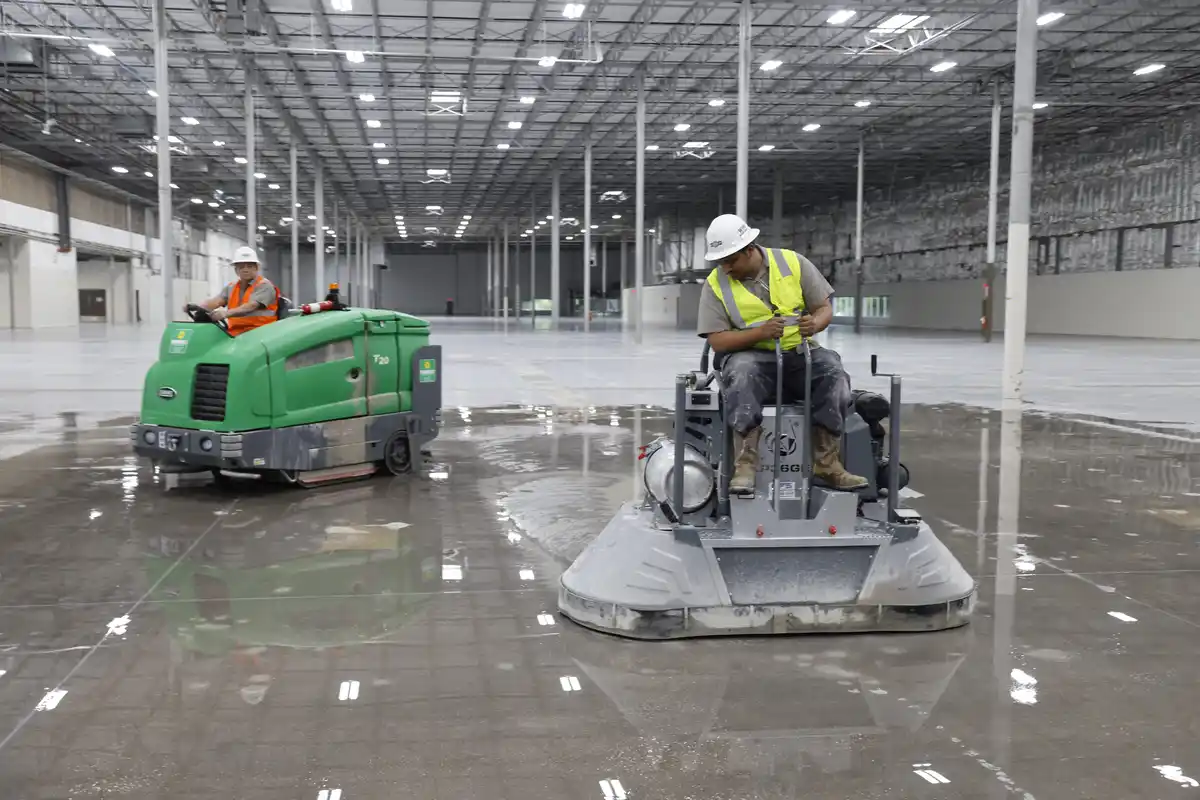

Warehouse · Polished Concrete Rehabilitation

120,000 SF coating removal → polished concrete

An existing coated warehouse slab moved through coating removal, surface repair, 70-grit metal-bond grinding, refinement through 400-grit resin, then densifier and guard for warehouse-style use.

Scale120,000 SF

Starting pointCoating + Repairs

Process70 Metal → 400 Resin

FinishDensifier + Guard

Read the Case Study →Surface Prep Scope

Photo shows active project processing; no finished-floor photo is being represented. Customer, location, schedule and unverified outcome metrics intentionally omitted.

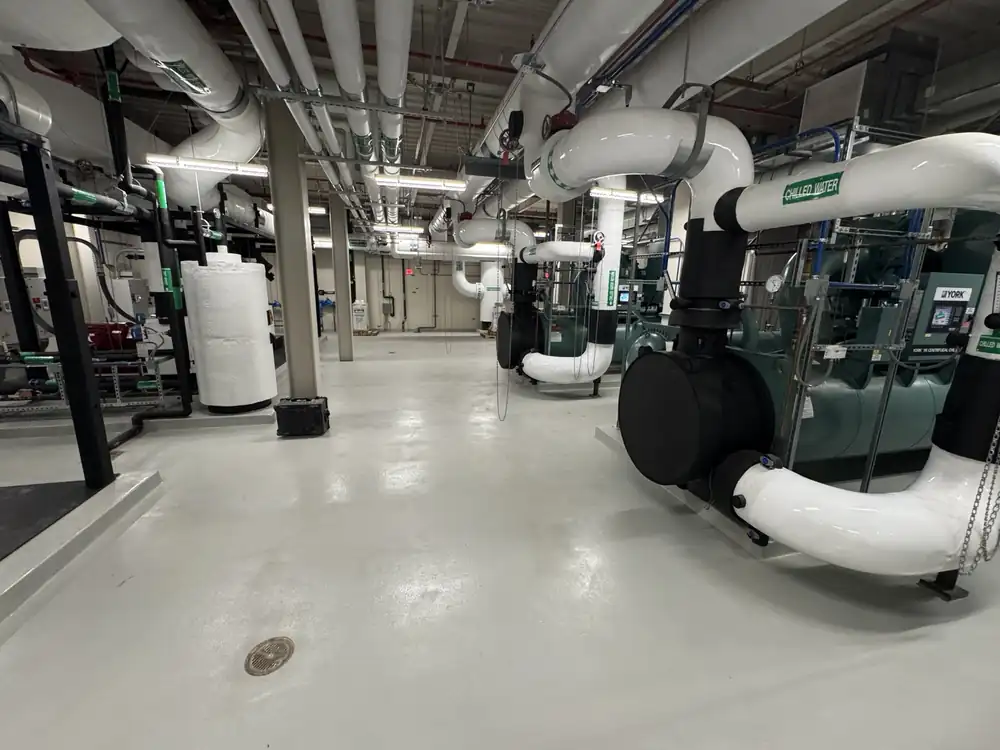

Completed 15,000 SF hospital facilities urethane cement flooring in a mechanical room

Healthcare · Urethane Cement Flooring

15,000 SF hospital facilities floor system

Mechanical, electrical and service areas received a 3/16-inch Sherwin-Williams Poly-Crete SLB urethane cement build with Novolak top coat, Resuflor Flex waterproof trench membrane and 6-inch cove detailing.

Scale15,000 SF

System3/16" Urethane Cement

WaterproofingResuflor Flex

Perimeter6" Cove

Read the Case Study →Healthcare Flooring

Customer and facility name intentionally withheld. Published facts are limited to the verified project scope.

Diamond polished concrete commercial floor

Polished Concrete · Lifecycle & Restoration

2017 installation → 2025 restoration

A stained and polished concrete floor returned years later for a refresh—not because the floor had to be replaced, but because the owner wanted to recover more of the original clarity and gloss.

Original install2017

Return2025

SystemStained + Polished

DecisionRestore, Not Replace

Read the Case Study →Technical Field Note

Customer/facility name intentionally omitted. No unsupported performance metrics or guarantees are implied.

Selected project work

A broader look at Diamond in the field.

Real Diamond photography across polished concrete, sealed concrete, resinous flooring, remediation, decorative systems and specialty scopes. As verified project details are assembled, selected work will graduate from gallery profile to full case study.

Large industrial sealed concrete floor — **Industrial sealed concrete**Large-format sealer application in a manufacturing environment

Crew installing resinous floor — **Resinous installation**Field execution

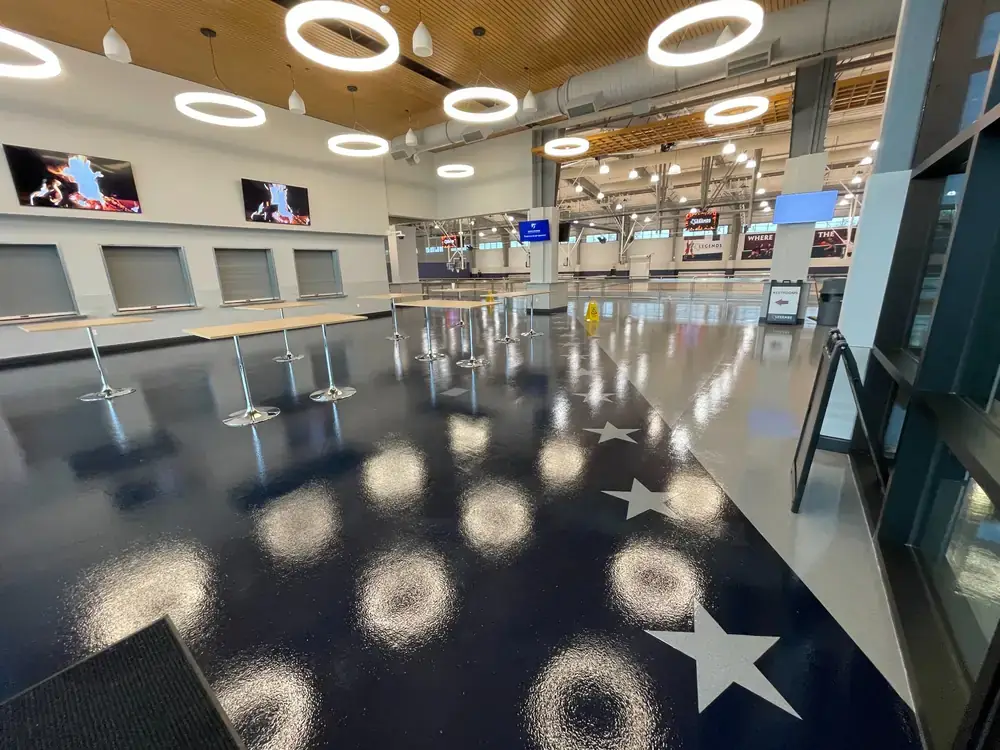

Decorative resinous floor — **Institutional resinous**High-traffic public facility

Aviation hangar floor — **Aviation / specialty**Large seamless coating system

Reflective polished concrete office floor — **Architectural polish**Commercial interior

School floor with decorative resinous pattern — **School / institutional**Decorative broadcast system

Commercial flooring project — **Commercial resinous**Finished public-facing facility

Floor resurfacing installation — **Remediation**Substrate correction in progress

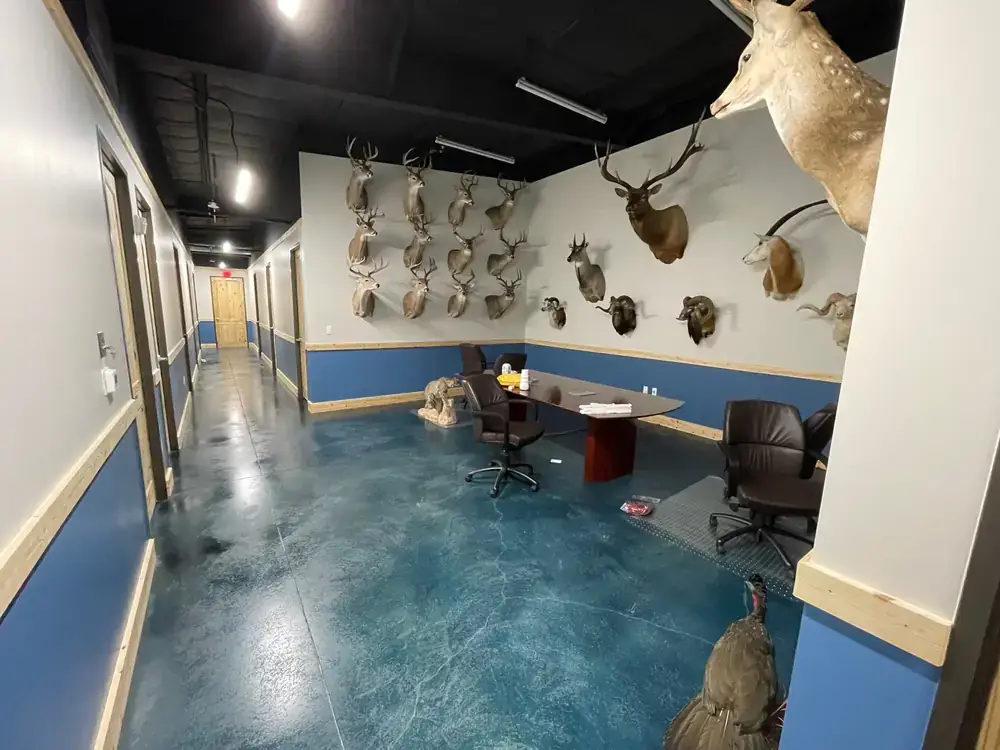

Blue decorative concrete floor — **Decorative concrete**Custom architectural finish

Below grade waterproofing — **Waterproofing**Below-grade protection

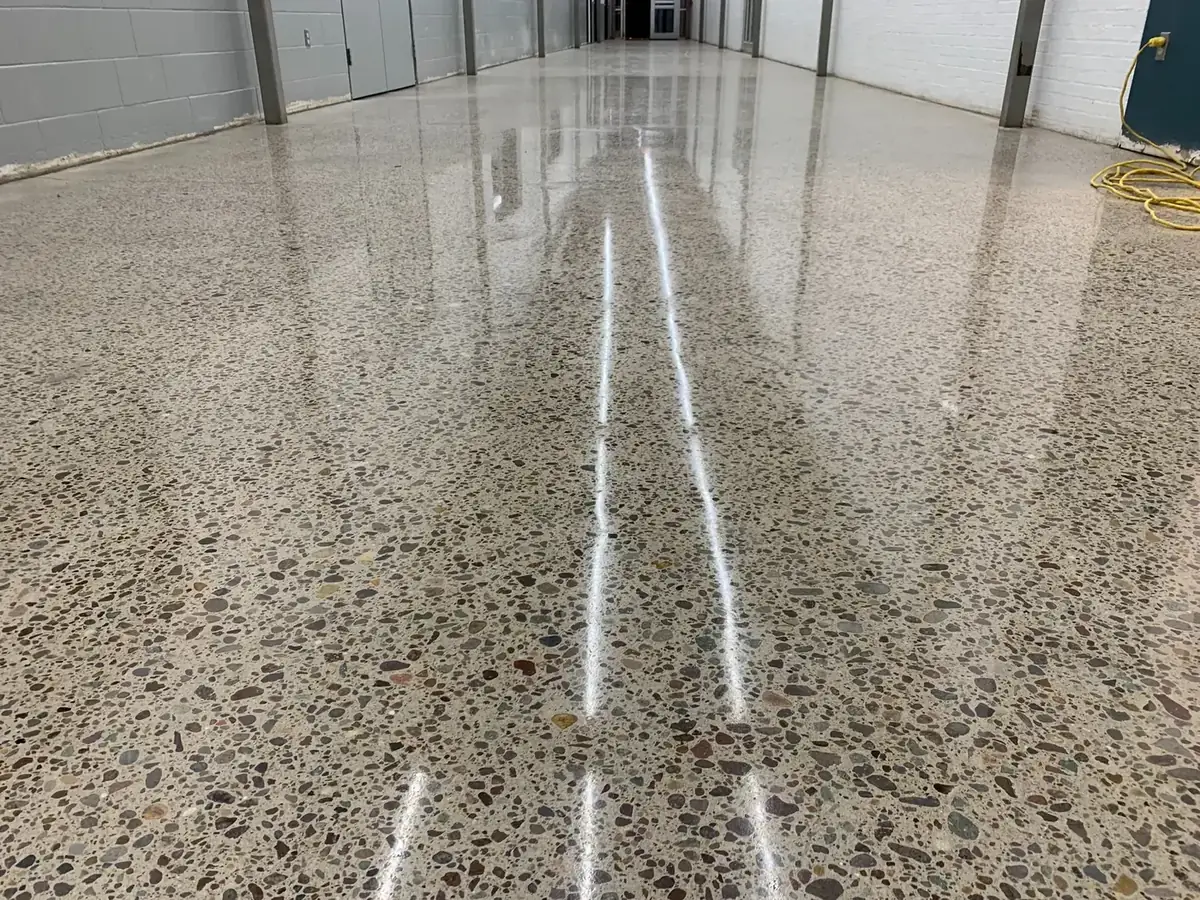

Polished aggregate closeup — **Aggregate exposure**Polished concrete detail

Gray coated floor — **High-build coating**Industrial service area

Diamond Resources

The work is only half the proof.

Strong project outcomes start with decisions made before installation: understanding the specification, recognizing slab risk, matching the system to the environment and planning for the way the floor will actually be used.

Our Resources library goes deeper into those decisions and gives preconstruction, project and facility teams practical guidance they can use before bid day and after turnover.

Explore Diamond Resources →
